Installation
Step-by-step guide to installing and activating the SATIM Gateway plugin.
1. Installation & Activation
Before using the SATIM Gateway plugin, ensure the following:
Requirements
-
WooCommerce must be installed and activated
The SATIM Gateway requires WooCommerce to function properly. If you haven’t installed WooCommerce yet, follow these steps:- Go to Plugins > Add New in your WordPress dashboard.
- In the search bar, type "WooCommerce."
- Click Install Now, then Activate WooCommerce.
Installation Methods
a) Install via WordPress Dashboard (Recommended)
- Download the SATIM Gateway plugin
.zip
file. - Go to WordPress Dashboard > Plugins > Add New.
- Click Upload Plugin at the top.
- Select the downloaded
.zip
file and click Install Now. - Once installed, click Activate Plugin.
b) Install via FTP (Alternative Method)
- Download the SATIM Gateway plugin
.zip
file and extract it. - Connect to your website using an FTP client (such as FileZilla).
- Navigate to the
/wp-content/plugins/
directory. - Upload the extracted
satim-gateway
folder to this directory. - After uploading, go to WordPress Dashboard > Plugins and click Activate under the SATIM Gateway plugin.

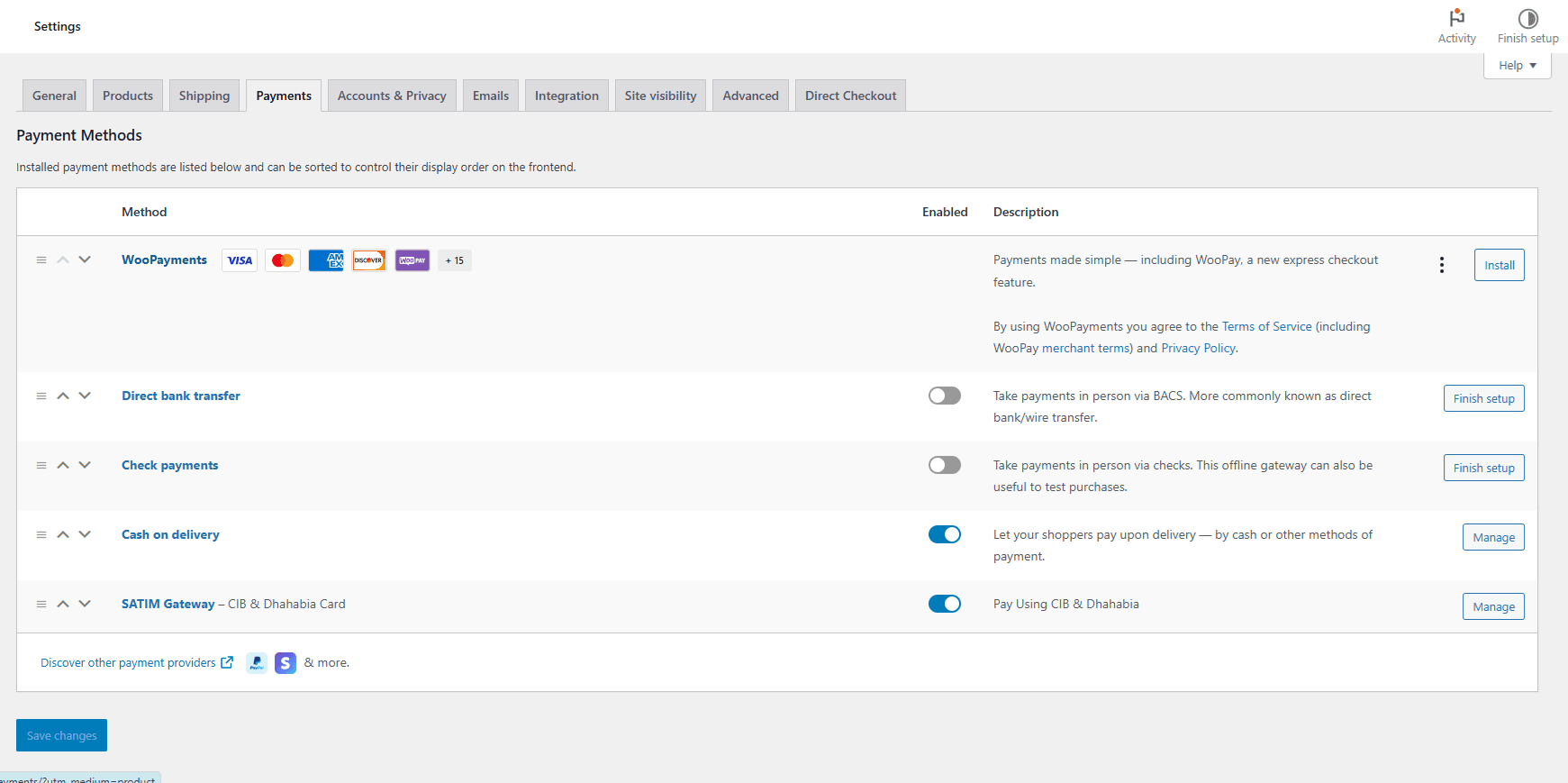

2. Accessing the SATIM Gateway Settings
Once the SATIM Gateway plugin is installed and activated, follow these steps to access its settings:
- Go to WordPress Dashboard.
- Navigate to WooCommerce > Settings.
- Click on the Payments tab.
- Locate SATIM Gateway in the list of available payment methods.
- Click on Manage to configure the gateway settings.
3. Configuring SATIM Gateway
After activating the SATIM Gateway plugin, follow these steps to configure it:
1. Access the Settings
- Go to WordPress Dashboard > WooCommerce > Settings.
- Click on the Payments tab.
- Find SATIM Gateway in the list of payment methods.
- Click on Manage.

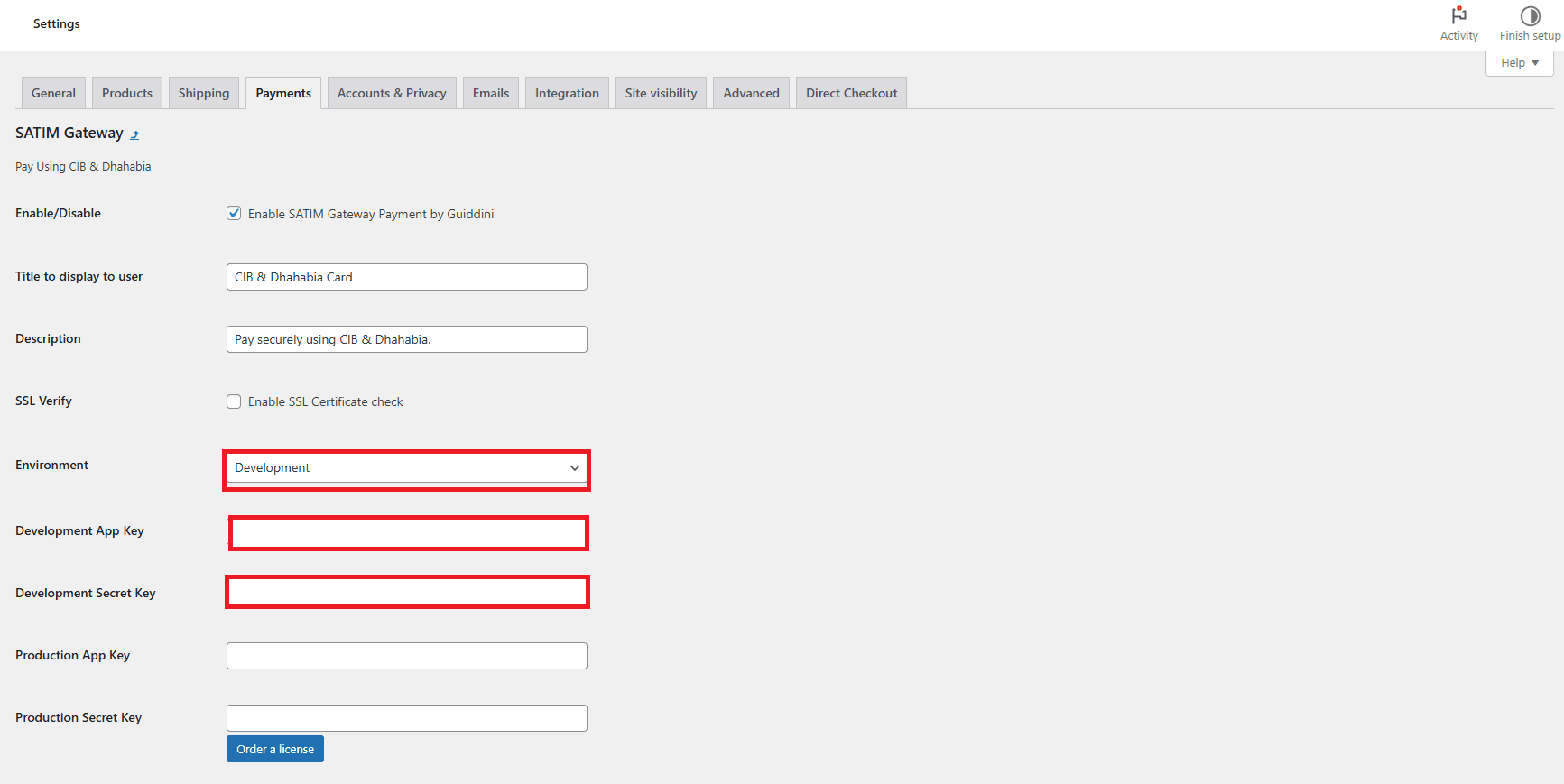

2. Choose Environment Mode
On the settings page, select the Environment Mode:
- Development – For testing transactions in a sandbox environment.
- Production – For real transactions on a live site.
3. Enter API Credentials
Depending on the environment selected, you will need to enter the following credentials:
-
Development Mode (Testing Environment)
- Development App Key
- Development Secret Key
-
Production Mode (Live Environment)
- Production App Key
- Production Secret Key
⚠️ Important: Ensure that you use the correct keys for each environment to prevent errors during transactions.

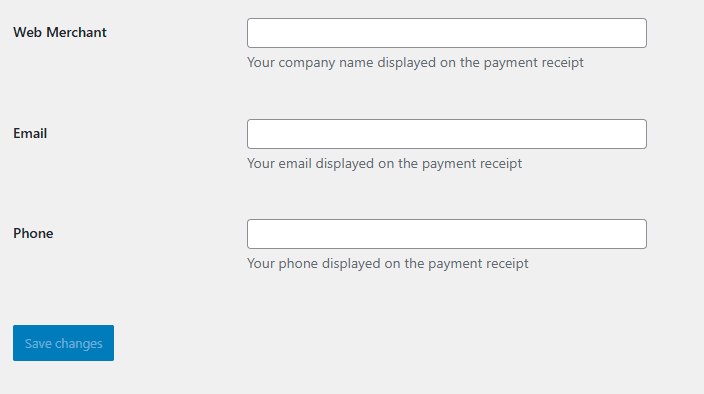

4. Business Information (Displayed on Receipt)
At the bottom of the SATIM Gateway settings page, enter your business details:
- Web Merchant Name – The name of your business or store.
- Email Address – The contact email for payment confirmations.
- Phone Number – The customer support phone number.
These details will appear on the payment receipt sent to customers.
5. Save Changes
After entering the information, click Save Changes to apply your settings.
Note: After following these steps, you should be able to start accepting payments via the SATIM Gateway plugin. Don't forget to add images/screenshots showing where to click in each section for a more visual guide.
